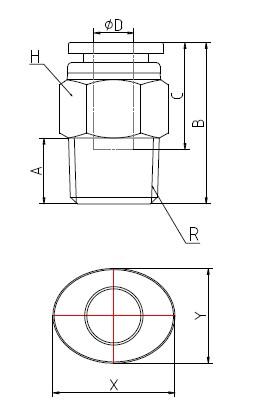

型号/MODEL

D

R

A

B

H

内六角

X

Y

C

HPC4-M5

4

M5

4

21

10

11.6

10.1

15.5

HPC4-01

4

R1/8

7.5

21.5

10

3.0

11.6

10.1

15.5

HPC4-02

4

R1/4

9.5

19.7

14

3.0

11.6

10.1

15.5

HPC6-M5

6

M5

4

21.5

12

14

12.5

16

HPC6-01

6

R1/8

7.5

21.5

12

4.0

14

12.5

16

HPC6-02

6

R1/4

9.5

20.5

14

4.0

14

12.5

16

HPC6-03

6

R3/8

10

20

17

4.0

14

12.5

16

HPC6-04

6

R1/2

13

23

21

4.0

14

12.5

16

HPC8-01

8

R1/8

7.5

24

14

5.0

16

14

18

HPC8-02

8

R1/4

9.5

24

14

6.0

16

14

18

HPC-03

8

R3/8

10

21.5

17

6.0

16

14

18

HPC-04

8

R1/2

13

23.5

21

6.0

16

14

18

HPC10-01

10

R1/8

7

28

17

5.0

19

16.5

20

HPC10-02

10

R1/4

9.5

30.5

17

6.0

20

HPC10-03

10

R3/8

10

27.5

17

8.0

20

HPC10-04

10

R1/2

13

25

21

8.0

20

HPC12-01

12

R1/8

7.5

29.5

19

5.0

21.5

18.5

21.5

HPC12-02

12

R1/4

9.5

31.5

19

6.0

21.5

HPC12-03

12

R3/8

10

28.5

19

8.0

21.5

HPC12-04

12

R1/2

13

28.5

21

8.0

21.5

HPC16-03

16

R3/8

10

35

24

8.0

27

24

24

HPC16-04

16

R1/2

13

33

24

10.0

27

24

24
